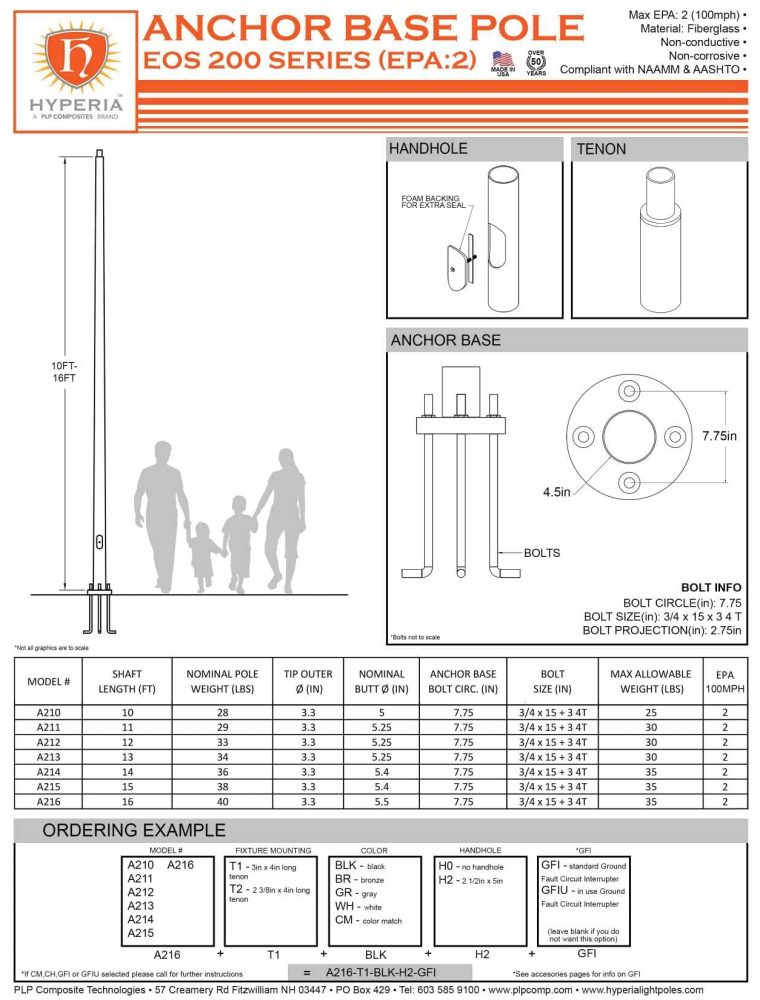

Anchor Base 200 Series | 100 mph

Smooth Round Light Poles

Model No
Mounting Height
(Ft)
Model No
Bolt Circ.
(In)
6.75
6.75
7.75
7.75
7.75
7.75
7.75
7.75
7.75
7.75
Model No
Bolt Diameter
(In)
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
Model No
Top Diameter
(In)
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
Model No
Butt Diameter
(In)
4.75
4.75
5.25
5.25
5.25
5.4
5.4
5.5
Mounting Height
(Ft)
Bolt Circ.
(In)
Bolt Diameter
(In)
Top Diameter
(In)
Butt Diameter
(In)
EPA
7
6.75
0.75
3.3
4.75
2
8
6.75
0.75
3.3
4.75
2
9
7.75
0.75
3.3
5
2
10
7.75
0.75
3.3
5
2
11
7.75
0.75
3.3
5.25
2
12
7.75
0.75
3.3
5.25
2
13
7.75
0.75
3.3
5.25
2
14
7.75
0.75
3.3
5.4
2
15
7.75
0.75
3.3
5.4
2
16
7.75
0.75
3.3
5.5
2

A = Anchor Base

Notes:
* EPA recommendations are calculated per AASHTO standards and include a 30% gust factor.
